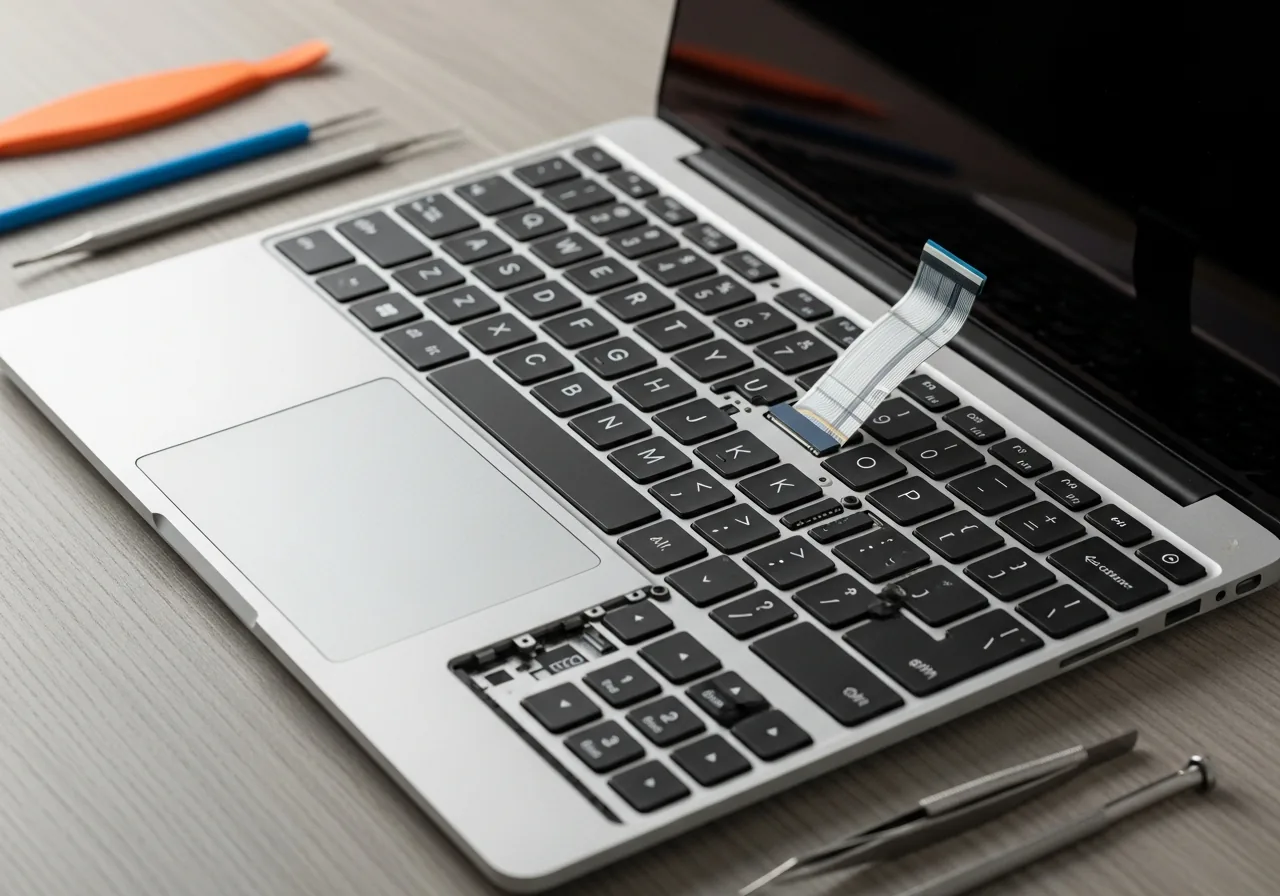

How to Replace a Laptop Keyboard

Tools & Parts Needed

1

Power Off and Unplug

Shut down the laptop, unplug the charger, and remove the battery if accessible.
2

Remove the Bottom Panel

Remove all bottom panel screws and gently pry off the panel with a plastic spudger.
3

Locate Keyboard Retention Screws

Some keyboards are held by screws from below the chassis, others by clips on the top surface.
4

Lift the dark plastic flap on the ZIF connector before pulling the ribbon — yanking a closed connector tears the ribbon and turns a $30 repair into a board swap.

Disconnect the Keyboard Ribbon Cable

Lift the ZIF locking tab with tweezers and slide out the ribbon cable gently — do not pull it.
5

Remove the Old Keyboard

Slide or lift the old keyboard free from the chassis, working systematically around the clips.
6

Connect the New Keyboard Ribbon Cable

Slide the new keyboard's ribbon cable into the ZIF connector and press the locking tab down.
7

Seat the New Keyboard

Lower the new keyboard into position, aligning all clips, and press it flat.
8

Secure All Screws and Clips

Reinstall all retention screws from beneath and press all keyboard clips into place.
9

Test Every Key

Power on and test every key using an online keyboard tester to confirm all keys work.

Ribbon cables are fragile — never pull them by the cable body, only by the connector.

Check the replacement keyboard matches your model number exactly, not just the visual appearance.

Note screw lengths carefully — using a long screw in a short hole can damage the motherboard.
